VI012-2A
MINI EXCAVATOR HIRE
Vi012-2A Mini Excavator Hire – SIMPLY THE BEST
COMPACTNESS

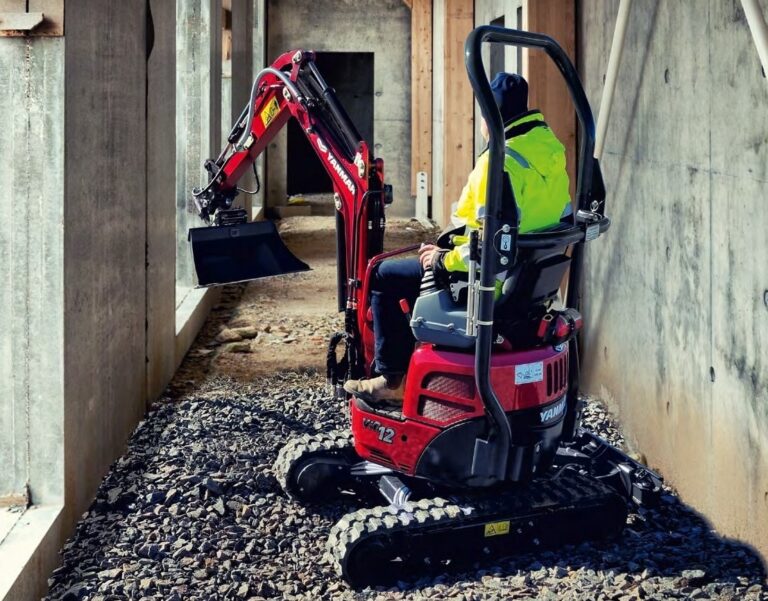

Here’s the shape for simple and efficient work in confined spaces. With its extendable undercarriage and its total width of 1 meter, the ViO12-2A is a tenacious worker for narrow spots such as housing foundations, indoor renovation, pipe laying and landscaping.
second travel speed
The second travel speed switch is available as standard which allows the machine to travel up to 4 km/h. This switch is located close to the travel levers, in the translation handles area.

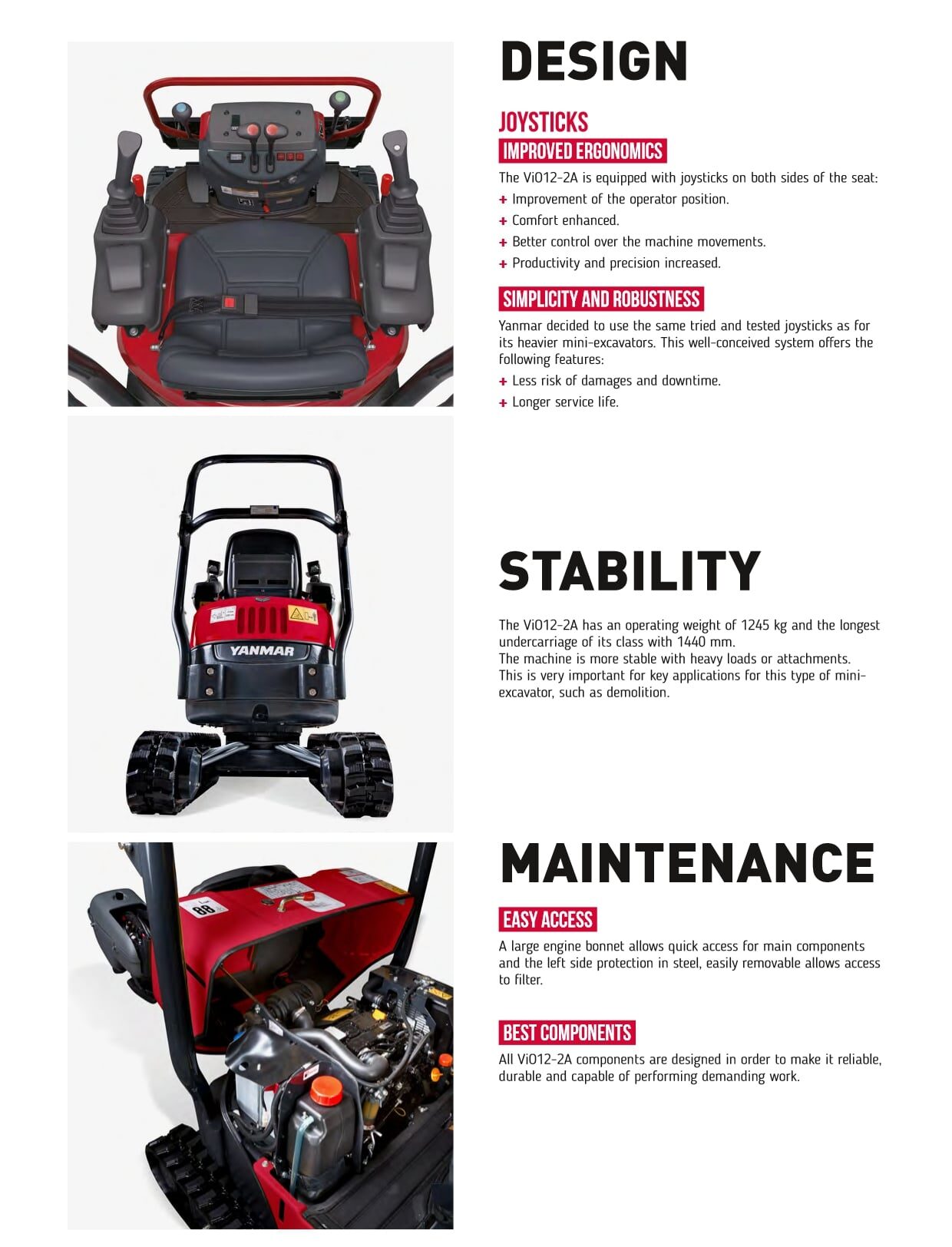

ERGONOMY
The use of joysticks on both sides of the seat enables to improve the position of the operator, therefore enhancing his comfort while working.
second travel speed
The second travel speed switch is available as standard which allows the machine to travel up to 4 km/h. This switch is located close to the travel levers, in the translation handles area.
YANMAR ENGINE
The YANMAR TNV engine has been designed to combine high power and cleaner emissions. With a power of 9,2 kW, it meets the European Commission (EC) emission standards.
PERFORMANCE
The attention paid to the quality of the power line ensures excellent performance while the optimal combination of the ViO12-2A excavation strengths and work cycles assures exceptional productivity.
COMPACTNESS
THE ViO12-2A IS A TRUE ZERO TAIL SWING EXCAVATOR:
+ Extended undercarriage: the front part of the upper frame doesn’t exceed the width of the crawlers.
+ Retracted undercarriage: the rear of the machine only exceeds 85 mm.
+ Minimum front swing radius with boom swing: 1080 mm.
+ Rear swing radius: only 650 mm.
+ Width of the retracted undercarriage reduced to 830 mm.
ADVANTAGES FOR THE USER:
Easy access in narrow areas and possibility to work along a wall.
+ Machine perfectly adapted for restoration of houses.
+ The ViO concept allows the operator to work without paying attention to the rear of the machine: safety and productivity.
EXTENDABLE UNDERCARRIAGE OF UNIQUE CONCEPTION
Reduced clearance between the sliding parts: no soil build-up during the extension of undercarriage.
+ High reliability over a long-term period.
+ The ViO12-2A is extremely stable due to the use of an extended undercarriage and good weight distribution.
SIMPLE FOLDING EXTENDABLE BLADE
The hinged blade extensions are permanently fixed on the blade.
No tools are necessary to change quickly the position.
No risk to lose the blade extensions.
Retracted undercarriage: 830 mm
Extended undercarriage: 1 000 mm

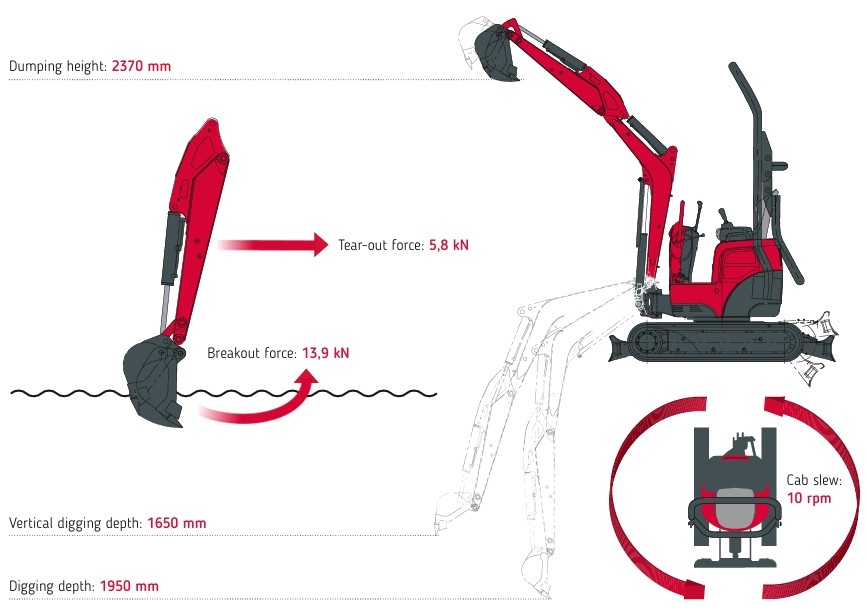

PERFORMANCE
ENGINE
HYDRAULICS
